More Widgets
This chapter introduces several more widgets: listbox, scrollbar, text, scale, spinbox, and progressbar. Some of these are starting to be a bit more powerful than the basic ones we looked at before. Here we'll also see a few instances of using the classic Tk widgets in cases where there isn't (or there isn't a need for) a themed counterpart.
Listbox
A listbox widget displays a list of single-line text items, usually lengthy, and allows users to browse through the list, selecting one or more.
Listboxes are part of the classic Tk widgets; there is not presently a listbox in the themed Tk widget set.
Tk's treeview widget (which is themed) can also be used as a listbox (a one-level deep tree), allowing you to use icons and styles with the list. It's also likely that a multi-column (table) list widget will make it into Tk at some point, whether based on treeview or one of the available extensions.
Listbox widgets.
Listboxes are created using the Listbox
class. A height configuration option can specify the number of lines the listbox will display at a time without scrolling:
l = Listbox(parent, height=10)
Listboxes are created using the tk::listbox
command. A height configuration option can specify the number of lines the listbox will display at a time without scrolling:
tk::listbox .l -height 10
Listboxes are created using the TkListbox
class. A height configuration option can specify the number of lines the listbox will display at a time without scrolling:
l = TkListbox.new(parent) {height 10}
Listboxes are created using the new_tk__listbox
method, a.k.a. Tkx::tk__listbox
. A height configuration option can specify the number of lines the listbox will display at a time without scrolling
$parent->new_tk__listbox(-height => 10);
Populating the Listbox Items
There's an easy way and a hard way to populate and manage all the items in the listbox.
Here's the easy way. Each listbox has a listvariable
configuration option, which allows you to
link a variable (which must hold a list) to the listbox. Each element of this list
is a string representing one item in the listbox. To add, remove, or rearrange
items in the listbox, you can simply modify this variable as you would any other
list. Similarly, to find out, e.g., which item is on the third line of the listbox, just
look at the third element of the list variable.
listbox
.
As we saw with widgets like entry
, we need to use a StringVar
as an intermediary. It provides a
mapping between Python's lists and a string representation that the underlying Tk widgets can use. It also means that anytime we change the list, we need to update the StringVar
.
choices = ["apple", "orange", "banana"]
choicesvar = StringVar(value=choices)
l = Listbox(parent, listvariable=choicesvar)
...
choices.append("peach")
choicesvar.set(choices)
Unfortunately, you can't pass a reference to a Perl list for this listvariable
parameter.
It actually requires a Tcl formatted list, which is a string with elements separated by spaces,
and braces around all but the simplest elements. So, you'll need to do the conversion
yourself. There's a simple one-liner in the upcoming example that handles converting fairly
simple lists, but for unknown data you'll need something more robust.
The older, harder way is to use a set of methods that are part of the listbox widget itself. They operate on the (internal) list of items maintained by the widget:
- The
insert idx item ?item...?
method is used to add one or more items to the list;idx
is a 0-based index indicating the position of the item before which the item(s) should be added; specifyend
to put the new items at the end of the list. - Use the
delete first ?last?
method to delete one or more items from the list;first
andlast
are indices as per theinsert
method. - Use the
get first ?last?
method to return the contents of a single item at the given position, or a list of the items betweenfirst
andlast
. - The
size
method returns the number of items in the list.
The reason there is a hard way at all is because the listvariable
option was only
introduced in Tk 8.3. Before that, you were stuck with the hard way. Because using
the list variable lets you use all the standard list operations, it provides a much
simpler API. It's certainly an upgrade worth considering if you have listboxes doing
things the older way.
Selecting Items
You can choose whether users can select only a
single item at a time from the listbox
or if multiple items can simultaneously be selected. This is
controlled by the selectmode
option: the default is only being able to select
a single item (browse
), while a selectmode
of extended
allows users to select
multiple items.
The names browse
and extended
, again for backward compatibility reasons, are truly awful.
This is made worse by the fact that there are two other modes, single
and multiple
, which
you should not use (they use an old interaction style that is inconsistent with modern
user interface and platform conventions).
To find out which item or items in the listbox are currently selected, use the curselection
method. It returns a list of indices of all items currently selected; this may be an
empty list. For lists with a selectmode
of browse
, it will never be longer than one item. You
can also use the selection_includes index
method to check if the item with the given
index is currently selected.
if lbox.selection_includes(2): ...
if {[$lbox selection includes 2]} {...}
if $lbox.selection_includes(2) ...
if ($lbox->selection_includes(2) {...}
To programmatically change the selection, you can use the selection_clear first ?last?
method to deselect either a single item or any within the range of indices specified. To select
an item or all items in a range, use the selection_set first ?last?
method. Both of
these will not touch the selection of any items outside the range specified.
If you change the selection, you should also ensure that the newly selected item is visible
(i.e., it is not scrolled out of view). To do this, use the see index
method.
lbox.selection_set(idx)
lbox.see(idx)
$lbox selection set $idx
$lbox see $idx
$lbox.selection_set(idx)
$lbox.see(idx)
$lbox->selection_set($idx);
$lbox->see($idx);
When a user changes the selection, a <<ListboxSelect>>
virtual event is generated.
You can bind to this to take any action you need. Depending on your application, you may also want to bind
to a double-click <Double-1>
event and use it to invoke an action with the currently selected item.
lbox.bind("<<ListboxSelect>>", lambda e: updateDetails(lbox.curselection()))
lbox.bind("<Double-1>", lambda e: invokeAction(lbox.curselection()))
bind $lbox <<ListboxSelect>> {updateDetails [$lbox curselection]}
bind $lbox <Double-1> {invokeAction [$lbox curselection]}
$lbox.bind('<ListboxSelect>', proc{updateDetails($lbox.curselection)})
$lbox.bind('Double-1', proc{invokeAction($lbox.curselection)})
$lbox->g_bind(<<ListboxSelect>>", sub {updateDetails($lbox->curselection)})'
$lbox->g_bind(<Double-1>", sub {invokeAction($lbox->curselection)});
Stylizing the List
Like most of the "classic" Tk widgets, you have immense flexibility in modifying the appearance of a listbox.
As described in the reference manual, you can
modify the font the listbox items are displayed in, the foreground (text) and background colors for items
in their normal state, when selected, when the widget is disabled, etc. There is also an
itemconfigure
method that allows you to change the foreground and background colors of
individual items.
As is often the case, restraint is useful. Generally, the default values will be entirely suitable and a good match for platform conventions. In the example we'll get to momentarily, we'll show how restrained use of these options can be put to good effect, in this case displaying alternate lines of the listbox in slightly different colors.
Keeping Extra Item Data
The listvariable
(or the internal list, if you're managing things the old way) holds
the strings that will be shown in the listbox. It's often the case, though, that each string you're displaying is
associated with some other data item. This might be an internal object meaningful to your program but not
meant to be displayed to users. In other words, what you're really interested in is not so much the string
displayed in the listbox but the associated data item. For example, a listbox may display a list of names
to users, but your program is really interested in the underlying user object (or id number)
for each one, not the particular name.
How can we associate this underlying value with the name that is displayed? Unfortunately, the listbox widget itself doesn't offer any facilities, so it's something we'll have to manage separately. There are a couple of obvious approaches. First, if the displayed strings are guaranteed unique, you could use a hash table to map each name to its associated underlying object. This wouldn't work well for peoples' names, where duplicates are possible, but could work for countries, which are unique.
A second approach is to keep a second list parallel to the list of strings displayed in the listbox. This second list will hold the underlying object associated with each item that is displayed. So the first item in the displayed strings list corresponds to the first item in the underlying objects list, the second to the second, etc. Any changes that you make in one list (insert, delete, reorder), you must make in the other. You can then easily map from the displayed list item to the underlying object based on their position in the list.
Example
Here is a silly example showing several of these listbox techniques. We'll have a list of countries displayed. We'll be able to select only a single country at a time. As we do so, a status bar will display the population of the country. You can press a button to send one of several gifts to the selected country's head of state (well, not really, but use your imagination). Sending a gift can also be triggered by double-clicking the list or hitting the Return key.
Behind the scenes, we maintain two lists in parallel. The first is a list of two-letter country codes. The other is the corresponding name for each country that we will display in the listbox. We also have a simple hash table that contains the population of each country, indexed by the two-letter country code.
Country selector listbox example.
from tkinter import *
from tkinter import ttk
root = Tk()
# Initialize our country "databases":
# - the list of country codes (a subset anyway)
# - parallel list of country names, same order as the country codes
# - a hash table mapping country code to population
countrycodes = ('ar', 'au', 'be', 'br', 'ca', 'cn', 'dk', 'fi', 'fr', 'gr', 'in', 'it', 'jp', 'mx', 'nl', 'no', 'es', 'se', 'ch')
countrynames = ('Argentina', 'Australia', 'Belgium', 'Brazil', 'Canada', 'China', 'Denmark', \
'Finland', 'France', 'Greece', 'India', 'Italy', 'Japan', 'Mexico', 'Netherlands', 'Norway', 'Spain', \
'Sweden', 'Switzerland')
cnames = StringVar(value=countrynames)
populations = {'ar':41000000, 'au':21179211, 'be':10584534, 'br':185971537, \
'ca':33148682, 'cn':1323128240, 'dk':5457415, 'fi':5302000, 'fr':64102140, 'gr':11147000, \
'in':1131043000, 'it':59206382, 'jp':127718000, 'mx':106535000, 'nl':16402414, \
'no':4738085, 'es':45116894, 'se':9174082, 'ch':7508700}
# Names of the gifts we can send
gifts = { 'card':'Greeting card', 'flowers':'Flowers', 'nastygram':'Nastygram'}
# State variables
gift = StringVar()
sentmsg = StringVar()
statusmsg = StringVar()
# Called when the selection in the listbox changes; figure out
# which country is currently selected, and then lookup its country
# code, and from that, its population. Update the status message
# with the new population. As well, clear the message about the
# gift being sent, so it doesn't stick around after we start doing
# other things.
def showPopulation(*args):
idxs = lbox.curselection()
if len(idxs)==1:
idx = int(idxs[0])
code = countrycodes[idx]
name = countrynames[idx]
popn = populations[code]
statusmsg.set("The population of %s (%s) is %d" % (name, code, popn))
sentmsg.set('')
# Called when the user double clicks an item in the listbox, presses
# the "Send Gift" button, or presses the Return key. In case the selected
# item is scrolled out of view, make sure it is visible.
#
# Figure out which country is selected, which gift is selected with the
# radiobuttons, "send the gift", and provide feedback that it was sent.
def sendGift(*args):
idxs = lbox.curselection()
if len(idxs)==1:
idx = int(idxs[0])
lbox.see(idx)
name = countrynames[idx]
# Gift sending left as an exercise to the reader
sentmsg.set("Sent %s to leader of %s" % (gifts[gift.get()], name))
# Create and grid the outer content frame
c = ttk.Frame(root, padding=(5, 5, 12, 0))
c.grid(column=0, row=0, sticky=(N,W,E,S))
root.grid_columnconfigure(0, weight=1)
root.grid_rowconfigure(0,weight=1)
# Create the different widgets; note the variables that many
# of them are bound to, as well as the button callback.
# We're using the StringVar() 'cnames', constructed from 'countrynames'
lbox = Listbox(c, listvariable=cnames, height=5)
lbl = ttk.Label(c, text="Send to country's leader:")
g1 = ttk.Radiobutton(c, text=gifts['card'], variable=gift, value='card')
g2 = ttk.Radiobutton(c, text=gifts['flowers'], variable=gift, value='flowers')
g3 = ttk.Radiobutton(c, text=gifts['nastygram'], variable=gift, value='nastygram')
send = ttk.Button(c, text='Send Gift', command=sendGift, default='active')
sentlbl = ttk.Label(c, textvariable=sentmsg, anchor='center')
status = ttk.Label(c, textvariable=statusmsg, anchor=W)
# Grid all the widgets
lbox.grid(column=0, row=0, rowspan=6, sticky=(N,S,E,W))
lbl.grid(column=1, row=0, padx=10, pady=5)
g1.grid(column=1, row=1, sticky=W, padx=20)
g2.grid(column=1, row=2, sticky=W, padx=20)
g3.grid(column=1, row=3, sticky=W, padx=20)
send.grid(column=2, row=4, sticky=E)
sentlbl.grid(column=1, row=5, columnspan=2, sticky=N, pady=5, padx=5)
status.grid(column=0, row=6, columnspan=2, sticky=(W,E))
c.grid_columnconfigure(0, weight=1)
c.grid_rowconfigure(5, weight=1)
# Set event bindings for when the selection in the listbox changes,
# when the user double clicks the list, and when they hit the Return key
lbox.bind('<<ListboxSelect>>', showPopulation)
lbox.bind('<Double-1>', sendGift)
root.bind('<Return>', sendGift)
# Colorize alternating lines of the listbox
for i in range(0,len(countrynames),2):
lbox.itemconfigure(i, background='#f0f0ff')
# Set the starting state of the interface, including selecting the
# default gift to send, and clearing the messages. Select the first
# country in the list; because the <<ListboxSelect>> event is only
# fired when users makes a change, we explicitly call showPopulation.
gift.set('card')
sentmsg.set('')
statusmsg.set('')
lbox.selection_set(0)
showPopulation()
root.mainloop()
# Initialize our country "databases":
# - the list of country codes (a subset anyway)
# - parallel list of country names, same order as the country codes
# - a hash table mapping country code to population
set countrycodes [list ar au be br ca cn dk fi fr gr in it jp mx nl no es se ch]
set countrynames [list Argentina Australia Belgium Brazil Canada China Denmark \
Finland France Greece India Italy Japan Mexico Netherlands Norway Spain \
Sweden Switzerland]
array set populations [list ar 41000000 au 21179211 be 10584534 br 185971537 \
ca 33148682 cn 1323128240 dk 5457415 fi 5302000 fr 64102140 gr 11147000 \
in 1131043000 it 59206382 jp 127718000 mx 106535000 nl 16402414 \
no 4738085 es 45116894 se 9174082 ch 7508700]
# Names of the gifts we can send
array set gifts [list card "Greeting card" flowers "Flowers" nastygram "Nastygram"]
# Create and grid the outer content frame
grid [ttk::frame .c -padding "5 5 12 0"] -column 0 -row 0 -sticky nwes
grid columnconfigure . 0 -weight 1; grid rowconfigure . 0 -weight 1
# Create the different widgets; note the variables that many
# of them are bound to, as well as the button callback.
# The listbox is the only widget we'll need to refer to directly
# later in our program, so for convenience we'll assign it to a variable.
set ::lbox [tk::listbox .c.countries -listvariable countrynames -height 5]
ttk::label .c.lbl -text "Send to country's leader:"
ttk::radiobutton .c.g1 -text $gifts(card) -variable gift -value card
ttk::radiobutton .c.g2 -text $gifts(flowers) -variable gift -value flowers
ttk::radiobutton .c.g3 -text $gifts(nastygram) -variable gift -value nastygram
ttk::button .c.send -text "Send Gift" -command {sendGift} -default active
ttk::label .c.sentlbl -textvariable sentmsg -anchor center
ttk::label .c.status -textvariable statusmsg -anchor w
# Grid all the widgets
grid .c.countries -column 0 -row 0 -rowspan 6 -sticky nsew
grid .c.lbl -column 1 -row 0 -padx 10 -pady 5
grid .c.g1 -column 1 -row 1 -sticky w -padx 20
grid .c.g2 -column 1 -row 2 -sticky w -padx 20
grid .c.g3 -column 1 -row 3 -sticky w -padx 20
grid .c.send -column 2 -row 4 -sticky e
grid .c.sentlbl -column 1 -row 5 -columnspan 2 -sticky n -pady 5 -padx 5
grid .c.status -column 0 -row 6 -columnspan 2 -sticky we
grid columnconfigure .c 0 -weight 1; grid rowconfigure .c 5 -weight 1
# Set event bindings for when the selection in the listbox changes,
# when the user double clicks the list, and when they hit the Return key
bind $::lbox <<ListboxSelect>> "showPopulation"
bind $::lbox <Double-1> "sendGift"
bind . <Return> "sendGift"
# Called when the selection in the listbox changes; figure out
# which country is currently selected, and then lookup its country
# code, and from that, its population. Update the status message
# with the new population. As well, clear the message about the
# gift being sent, so it doesn't stick around after we start doing
# other things.
proc showPopulation {} {
set idx [$::lbox curselection]
if {[llength $idx]==1} {
set code [lindex $::countrycodes $idx]
set name [lindex $::countrynames $idx]
set popn $::populations($code)
set ::statusmsg "The population of $name ($code) is $popn"
}
set ::sentmsg ""
}
# Called when the user double clicks an item in the listbox, presses
# the "Send Gift" button, or presses the Return key. In case the selected
# item is scrolled out of view, make sure it is visible.
#
# Figure out which country is selected, which gift is selected with the
# radiobuttons, "send the gift", and provide feedback that it was sent.
proc sendGift {} {
set idx [$::lbox curselection]
if {[llength $idx]==1} {
$::lbox see $idx
set name [lindex $::countrynames $idx]
# Gift sending left as an exercise to the reader
set ::sentmsg "Sent $::gifts($::gift) to leader of $name"
}
}
# Colorize alternating lines of the listbox
for {set i 0} {$i<[llength $countrynames]} {incr i 2} {
$::lbox itemconfigure $i -background #f0f0ff
}
# Set the starting state of the interface, including selecting the
# default gift to send, and clearing the messages. Select the first
# country in the list; because the <<ListboxSelect>> event is only
# fired when users makes a change, we explicitly call showPopulation.
set gift card
set sentmsg ""
set statusmsg ""
$::lbox selection set 0
showPopulation
require 'tkextlib/tile'
# Initialize our country "databases":
# - the list of country codes (a subset anyway)
# - parallel list of country names, same order as the country codes
# - a hash table mapping country code to population
$countrycodes = %w{ ar au be br ca cn dk fi fr gr in it jp mx nl no es se ch }
$countrynames = %w{ Argentina Australia Belgium Brazil Canada China Denmark
Finland France Greece India Italy Japan Mexico Netherlands Norway Spain
Sweden Switzerland}
$populations = { 'ar' => 41000000, 'au' => 21179211, 'be' => 10584534, 'br' => 185971537,
'ca' => 33148682, 'cn' => 1323128240, 'dk' => 5457415, 'fi' => 5302000,
'fr' => 64102140, 'gr' => 11147000, 'in' => 1131043000, 'it' => 59206382,
'jp' => 127718000, 'mx' => 106535000, 'nl' => 16402414, 'no' => 4738085,
'es' => 45116894, 'se' => 9174082, 'ch' => 7508700}
# Names of the gifts we can send
$gifts = { 'card' => "Greeting card", 'flowers' => "Flowers", 'nastygram' => "Nastygram" }
# Create and initialize the linked variables we'll need in the interface
$gift = TkVariable.new( "card" )
$names = TkVariable.new ( $countrynames )
$sent = TkVariable.new ( "" )
$status = TkVariable.new ( "" )
# Create and grid the outer content frame
root = TkRoot.new
content = Tk::Tile::Frame.new(root) {padding "5 5 12 0"}.grid :column => 0, :row => 0, :sticky => "nwes"
TkGrid.columnconfigure root, 0, :weight => 1
TkGrid.rowconfigure root, 0, :weight => 1
# Create the different widgets; note the variables that many
# of them are bound to, as well as the button callback.
$countries = TkListbox.new(content) {listvariable $names; height 5}
sendlbl = Tk::Tile::Label.new(content) {text "Send to country's leader:"}
gift1 = Tk::Tile::Radiobutton.new(content) {text $gifts['card']; variable $gift; value 'card'}
gift2 = Tk::Tile::Radiobutton.new(content) {text $gifts['flowers']; variable $gift; value 'floweres'}
gift3 = Tk::Tile::Radiobutton.new(content) {text $gifts['nastygram']; variable $gift; value 'nastygram'}
send = Tk::Tile::Button.new(content) {text "Send Gift"; command "sendGift"; default "active"}
sentlbl = Tk::Tile::Label.new(content) {textvariable $sent; anchor "center"}
statuslbl = Tk::Tile::Label.new(content) {textvariable $status; anchor "w"}
# Grid all the widgets
$countries.grid :column => 0, :row => 0, :rowspan => 6, :sticky => 'nsew'
sendlbl.grid :column => 1, :row => 0, :padx => 10, :pady => 5
gift1.grid :column => 1, :row => 1, :sticky => 'w', :padx => 20
gift2.grid :column => 1, :row => 2, :sticky => 'w', :padx => 20
gift3.grid :column => 1, :row => 3, :sticky => 'w', :padx => 20
send.grid :column => 2, :row => 4, :sticky => 'e'
sentlbl.grid :column => 1, :row => 5, :columnspan => 2, :sticky => 'n', :pady => 5, :padx => 5
statuslbl.grid :column => 0, :row => 6, :columnspan => 2, :sticky => 'we'
TkGrid.columnconfigure content, 0, :weight => 1
TkGrid.rowconfigure content, 5, :weight => 1
# Set event bindings for when the selection in the listbox changes,
# when the user double clicks the list, and when they hit the Return key
$countries.bind '<ListboxSelect>', proc{showPopulation}
$countries.bind 'Double-1', proc{sendGift}
root.bind 'Return', proc{sendGift}
# Called when the selection in the listbox changes; figure out
# which country is currently selected, and then lookup its country
# code, and from that, its population. Update the status message
# with the new population. As well, clear the message about the
# gift being sent, so it doesn't stick around after we start doing
# other things.
def showPopulation
idx = $countries.curselection
if idx.length==1
idx = idx[0]
code = $countrycodes[idx]
name = $countrynames[idx]
popn = $populations[code]
$status.value = "The population of #{name} (#{code}) is #{popn}"
end
$sent.value = ""
end
# Called when the user double clicks an item in the listbox, presses
# the "Send Gift" button, or presses the Return key. In case the selected
# item is scrolled out of view, make sure it is visible.
#
# Figure out which country is selected, which gift is selected with the
# radiobuttons, "send the gift", and provide feedback that it was sent.
def sendGift
idx = $countries.curselection
if idx.length==1
idx = idx[0]
$countries.see idx
name = $countrynames[idx]
# Gift sending left as an exercise to the reader
$sent.value = "Sent #{$gifts[$gift.value]} to leader of #{name}"
end
end
# Colorize alternating lines of the listbox
0.step($countrycodes.length-1, 2) {|i| $countries.itemconfigure i, :background, "#f0f0ff"}
# Select the first country in the list; because the <<ListboxSelect>> event is only
# fired when users makes a change, we explicitly call showPopulation.
$countries.selection_set 0
showPopulation
Tk.mainloop
use Tkx;
# Initialize our country "databases":
# - the list of country codes (a subset anyway)
# - parallel list of country names, same order as the country codes
# - a hash table mapping country code to population
@countrycodes = ("ar", "au", "be", "br", "ca", "cn", "dk", "fi", "fr", "gr", "in", "it", "jp", "mx",
"nl", "no", "es", "se", "ch");
@countrynames = ("Argentina", "Australia", "Belgium", "Brazil", "Canada", "China", "Denmark",
"Finland", "France", "Greece", "India", "Italy", "Japan", "Mexico", "Netherlands", "Norway", "Spain",
"Sweden", "Switzerland");
%populations = ("ar" => 41000000, "au" => 21179211, "be" => 10584534, "br" => 185971537,
"ca" => 33148682, "cn" => 1323128240, "dk" => 5457415, "fi" => 5302000, "fr" => 64102140, "gr" => 11147000,
"in" => 1131043000, "it" => 59206382, "jp" => 127718000, "mx" => 106535000, "nl" => 16402414,
"no" => 4738085, "es" => 45116894, "se" => 9174082, "ch" => 7508700);
# Names of the gifts we can send
%gifts =("card" => "Greeting card", "flowers" => "Flowers", "nastygram" => "Nastygram");
# Create and grid the outer content frame
$mw = Tkx::widget->new(".");
$content = $mw->new_ttk__frame(-padding => "5 5 12 0");
$content->g_grid(-column => 0, -row => 0, -sticky => "nwes");
$mw->g_grid_columnconfigure(0, -weight => 1);
$mw->g_grid_rowconfigure(0, -weight => 1);
# Create the different widgets; note the variables that many
# of them are bound to, as well as the button callback.
# The listbox is the only widget we'll need to refer to directly
# later in our program, so for convenience we'll assign it to a variable.
# Remember that we must use a Tcl formatted list for listvariable.
$cnames = ''; foreach $i (@countrynames) {$cnames = $cnames . ' {' . $i . '}';};
$lbox = $content->new_tk__listbox(-listvariable => \$cnames, -height => 5);
$lbl = $content->new_ttk__label(-text => "Send to country's leader:");
$g1 = $content->new_ttk__radiobutton(-text => $gifts{'card'}, -variable => \$gift, -value => 'card');
$g2 = $content->new_ttk__radiobutton(-text => $gifts{'flowers'}, -variable => \$gift, -value => 'flowers');
$g3 = $content->new_ttk__radiobutton(-text => $gifts{'nastygram'}, -variable => \$gift, -value => 'nastygram');
$send = $content->new_ttk__button(-text => "Send Gift", -command => sub {sendGift()}, -default => 'active');
$l1 = $content->new_ttk__label(-textvariable => \$sentmsg, -anchor => "center");
$l2 = $content->new_ttk__label(-textvariable => \$statusmsg, -anchor => "w");
# Grid all the widgets
$lbox->g_grid(-column => 0, -row => 0, -rowspan => 6, -sticky => "nsew");
$lbl->g_grid(-column => 1, -row => 0, -padx => 10, -pady => 5);
$g1->g_grid(-column => 1, -row => 1, -sticky => "w", -padx => 20);
$g2->g_grid(-column => 1, -row => 2, -sticky => "w", -padx => 20);
$g3->g_grid(-column => 1, -row => 3, -sticky => "w", -padx => 20);
$send->g_grid(-column => 2, -row => 4, -sticky => "e");
$l1->g_grid(-column => 1, -row => 5, -columnspan => 2, -sticky => "n", -pady => 5, -padx => 5);
$l2->g_grid(-column => 0, -row => 6, -columnspan => 2, -sticky => "we");
$content->g_grid_columnconfigure(0, -weight => 1);
$content->g_grid_rowconfigure(0, -weight => 1);
# Set event bindings for when the selection in the listbox changes,
# when the user double clicks the list, and when they hit the Return key
$lbox->g_bind("<<ListboxSelect>>", sub {showPopulation()});
$lbox->g_bind("<Double-1>", sub {sendGift()});
$mw->g_bind("<Return>", sub {sendGift()});
# Called when the selection in the listbox changes; figure out
# which country is currently selected, and then lookup its country
# code, and from that, its population. Update the status message
# with the new population. As well, clear the message about the
# gift being sent, so it doesn't stick around after we start doing
# other things.
sub showPopulation {
my @idx = $lbox->curselection;
if ($#idx==0) {
my $code = $countrycodes[$idx[0]];
my $name = $countrynames[$idx[0]];
my $popn = $populations{$code};
$statusmsg = "The population of " . $name . "(" . $code . ") is $popn";
}
$sentmsg = "";
}
# Called when the user double clicks an item in the listbox, presses
# the "Send Gift" button, or presses the Return key. In case the selected
# item is scrolled out of view, make sure it is visible.
#
# Figure out which country is selected, which gift is selected with the
# radiobuttons, "send the gift", and provide feedback that it was sent.
sub sendGift {
my @idx = $lbox->curselection;
if ($#idx==0) {
$lbox->see($idx[0]);
my $name =$countrynames[$idx[0]];
# Gift sending left as an exercise to the reader
$sentmsg = "Sent " . $gifts{$gift} . " to leader of " . $name
}
}
# Colorize alternating lines of the listbox
for ($i=0; $i<=$#countrynames; $i+=2) {
$lbox->itemconfigure($i, -background => "#f0f0ff");
}
# Set the starting state of the interface, including selecting the
# default gift to send, and clearing the messages. Select the first
# country in the list; because the <<ListboxSelect>> event is only
# fired when users makes a change, we explicitly call showPopulation.
$gift = 'card';
$sentmsg = "";
$statusmsg = "";
$lbox->selection_set(0);
showPopulation;
Tkx::MainLoop();
One obvious thing missing from this example was that while the list of countries could be quite long, only part of it fits on the screen at once. To show countries further down in the list, you had to either drag with your mouse or use the down arrow key. A scrollbar would have been nice. Let's fix that.
Scrollbar
A scrollbar widget helps users see all parts of another widget, whose content is typically much larger than what can be shown in the available screen space.
Scrollbar widgets.
Scrollbars are created using the ttk.Scrollbar
class:
s = ttk.Scrollbar( parent, orient=VERTICAL, command=listbox.yview)
listbox.configure(yscrollcommand=s.set)
Scrollbars are created using the ttk::scrollbar
command:
ttk::scrollbar .s -orient vertical -command ".l yview"
.l configure -yscrollcommand ".s set"
Scrollbars are created using the Tk::Tile::Scrollbar
class:
s = Tk::Tile::Scrollbar.new(parent) {orient "vertical";
command proc{|*args| l.yview(*args);} }
l['yscrollcommand'] = proc{|*args| s.set(*args);}
new_ttk__scrollbar
method, a.k.a. Tkx::ttk__scrollbar
:
$s = $parent->new_ttk__scrollbar(-orient => 'vertical', -command => [$listbox, 'yview']);
$listbox->configure(-scrollcommand => [$s, 'set']);
Unlike in some user interface toolkits, Tk scrollbars are not a part of another widget (e.g., a listbox) but are a separate widget altogether. Instead, scrollbars communicate with the scrolled widget by calling methods on the scrolled widget; as it turns out, the scrolled widget also needs to call methods on the scrollbar.
If you're using a recent Linux distribution, you've probably noticed that the scrollbars you see in many applications have changed to look more like what you'd see on macOS. This newer look isn't supported on Linux by any of the default themes included with Tk. However, some third-party themes do support it.
The orient
configuration option determines whether the scrollbar will
scroll the scrolled widget in the horizontal
or vertical
dimension. You then need to use the
command
configuration option to specify how to communicate with the scrolled widget. This is the
method to call on the scrolled widget when the scrollbar moves.
Every widget that can be scrolled vertically includes a method named yview
, while those that
can be scrolled horizontally have a method named xview
). As long as this method is
present, the scrollbar doesn't need to know anything else about the scrolled widget. When the
scrollbar is manipulated, it appends several parameters to the method call, indicating
how it was scrolled, to what position, etc.
The scrolled widget also needs to communicate back to the scrollbar, telling it what percentage
of the entire content area is now visible. Besides the yview
and/or xview
methods,
every scrollable widget also has a yscrollcommand
and/or xscrollcommand
configuration option. This is used to specify a method call, which must be the scrollbar's
set
method. Again, additional parameters will be automatically tacked onto the method
call.
Most scrollable widgets also have xscrollbar
and yscrollbar
methods that
will save you the trouble of writing your own command
, xscrollcommand
,
and yscrollcommand
callbacks needed to wire a scrollable widget to a scrollbar.
Instead you just do something like:
s = Tk::Tile::Scrollbar.new(parent) {orient "vertical"}
l.yscrollbar = s
If you want to move the scrollbar to a particular position from within your program,
you can call the set first last
method yourself. Pass it two floating-point values (between
0 and 1) indicating the start and end percentage of the content area that is visible.
Example

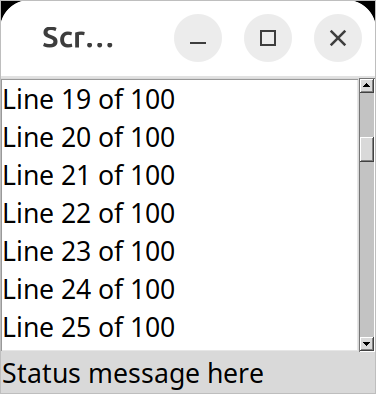

Listboxes are one of several types of widgets that are scrollable. Here, we'll build a very simple user interface consisting of a vertically scrollable listbox that takes up the entire window, with just a status line at the bottom.
Scrolling a listbox.
from tkinter import *
from tkinter import ttk
root = Tk()
l = Listbox(root, height=5)
l.grid(column=0, row=0, sticky=(N,W,E,S))
s = ttk.Scrollbar(root, orient=VERTICAL, command=l.yview)
s.grid(column=1, row=0, sticky=(N,S))
l['yscrollcommand'] = s.set
ttk.Label(root, text="Status message here", anchor=(W)).grid(column=0, columnspan=2, row=1, sticky=(W,E))
root.grid_columnconfigure(0, weight=1)
root.grid_rowconfigure(0, weight=1)
for i in range(1,101):
l.insert('end', 'Line %d of 100' % i)
root.mainloop()
grid [tk::listbox .l -yscrollcommand ".s set" -height 5] -column 0 -row 0 -sticky nwes
grid [ttk::scrollbar .s -command ".l yview" -orient vertical] -column 1 -row 0 -sticky ns
grid [ttk::label .stat -text "Status message here" -anchor w] -column 0 -columnspan 2 -row 1 -sticky we
grid columnconfigure . 0 -weight 1; grid rowconfigure . 0 -weight 1
for {set i 0} {$i<100} {incr i} {
.l insert end "Line $i of 100"
}
require 'tk'
require 'tkextlib/tile'
root = TkRoot.new
$l = TkListbox.new(root) {height 5;
yscrollcommand proc{|*args| $s.set(*args)} }.grid :column => 0, :row => 0, :sticky => 'nwes'
$s = Tk::Tile::Scrollbar.new(root) {orient 'vertical';
command proc{|*args| $l.yview(*args)}}.grid :column => 1, :row => 0, :sticky => 'ns'
stat = Tk::Tile::Label.new(root) {text "Status message here";
anchor 'w'}.grid :column => 0, :columnspan => 2, :row => 1, :sticky => 'we'
TkGrid.columnconfigure root, 0, :weight => 1
TkGrid.rowconfigure root, 0, :weight => 1
(0..99).each {|i| $l.insert 'end', "Line #{i} of 100"}
Tk.mainloop
use Tkx;
my $mw = Tkx::widget->new(".");
($lb = $mw->new_tk__listbox(-height => 5))->g_grid(-column => 0, -row => 0, -sticky => "nwes");
($s = $mw->new_ttk__scrollbar(-command => [$lb, "yview"],
-orient => "vertical"))->g_grid(-column =>1, -row => 0, -sticky => "ns");
$lb->configure(-yscrollcommand => [$s, "set"]);
($mw->new_ttk__label(-text => "Status message here",
-anchor => "w"))->g_grid(-column => 0, -columnspan => 2, -row => 1, -sticky => "we");
$mw->g_grid_columnconfigure(0, -weight => 1); $mw->g_grid_rowconfigure(0, -weight => 1);
for ($i=0; $i<100; $i++) {
$lb->insert("end", "Line " . $i . " of 100");
}
Tkx::MainLoop();
If you've seen an earlier version of this tutorial, you might recall that at this point, we
introduced a sizegrip
widget. It placed a small handle at the bottom right of the
window, allowing users to resize the window by dragging the handle. This was commonly seen on
some platforms, including older versions of macOS. Some older versions of Tk even automatically
added this handle to the window for you.
Platform conventions tend to evolve faster than long-lived open
source GUI toolkits. Mac OS X 10.7 did away with the size grip in the corner
in favor of allowing resizing from any window edge, finally catching up with
the rest of the world. Unless there's a pressing need to be visually compatible with 10+ year old
operating systems, if you have a sizegrip
in your
application, it's probably best to remove it.
Text
A text widget provides users with an area so that they can enter multiple lines of text.
Text widgets are part of the classic Tk widgets, not the themed Tk widgets.
Text widgets.
Tk's text widget is, along with the canvas widget, one of two uber-powerful widgets that provide amazingly deep but easily programmed features. Text widgets have formed the basis for full word processors, outliners, web browsers, and more. We'll get into some of the advanced stuff in a later chapter. Here, we'll show you how to use the text widget to capture fairly simple, multi-line text input.
Text widgets are created using the Text
class:
t = Text(parent, width=40, height=10)
Text widgets are created using the tk::text
command:
tk::text .t -width 40 -height 10
Text widgets are created using the TkText
class:
t = TkText.new(parent) {width 40; height 10}
Text widgets are created using the new_tk__text
method, a.k.a. Tkx::tk__text
:
$parent->new_tk__text(-width => 40, -height => 10);
The width
and height
options specify the requested screen size of the text
widget, in characters and rows, respectively. The contents of the text can be arbitrarily large.
You can use the wrap
configuration option to control how line wrapping is handled:
values are none
(no wrapping, text may horizontally scroll), char
(wrap at any
character), and word
(wrapping will only occur at word boundaries).
A text widget can be disabled so that no editing can occur. Because text is not a themed widget,
the usual state
and instate
methods are not available. Instead, use the
configuration option state
, setting it to either disabled
or normal
.
txt['state'] = 'disabled'
.txt configure -state disabled
txt['state'] = 'disabled'
$txt->configure(-state => "disabled");
Scrolling works the same way as in listboxes. The xscrollcommand
and yscrollcommand
configuration options attach the text widget to horizontal and/or vertical scrollbars,
and the xview
and yview
methods are called from scrollbars.
To ensure that a given line is visible (i.e., not scrolled out of view), you can use the see index
method, where index
is in the form linenum.charnum
, e.g.,
5.0
for the first (0-based) character of line 5 (1-based).
Contents
Text widgets do not have a linked variable associated with them like, for example, entry widgets do.
To retrieve the contents of the entire text widget, call the method get 1.0 end
; the 1.0
is an index into the text and means the first character of the first line, and end
is a shortcut
for the index of the last character in the last line. Other indices could be provided to retrieve smaller ranges of
text if needed.
Text can be added to the widget using the insert index string
method; again index
is in the form line.char
and marks the character before which text is inserted; use end
to add text to the end of the widget. You can delete a range of text using the delete start end
method, where both start
and end
are text indices as already described.
We'll get into the text widget's many additional advanced features in a later chapter.
Scale
A scale widget allows users to choose a numeric value through direct manipulation.
Scale widgets.
Scale widgets are created using the ttk.Scale
class:
s = ttk.Scale(parent, orient=HORIZONTAL, length=200, from_=1.0, to=100.0)
Because 'from' is a reserved keyword in Python, we need to add a trailing underscore when using it as a configuration option.
Scale widgets are created using the ttk::scale
command:
ttk::scale .s -orient horizontal -length 200 -from 1.0 -to 100.0
Scale widgets are created using the Tk::Tile::Scale
class:
s = Tk::Tile::Scale.new(parent) {orient 'horizontal'; length 200; from 1.0; to 100.0}
Scale widgets are created using the new_ttk__scale
method, a.k.a. Tkx::ttk__scale
:
$parent->new_ttk__scale(-orient => 'horizontal', -length => 200, -from => 1.0, -to => 100.0);
The orient
option may be either horizontal
or vertical
. The length
option, which represents the longer axis of either horizontal or vertical scales, is specified in screen
units (e.g., pixels). You should also define the range of the number that
the scale allows users to choose; to do this, set a floating-point number for each of the
from
and to
configuration options.
There are several different ways you can set the current value of the scale (which must be a floating-point
value between the from
and to
values).
You can set (or read, to get the current value)
the scale's value
configuration option. You can link the scale to a variable using the variable
option. Or, you can call the scale's set value
method to change the value or the get
method to read the current value.
A command
configuration option lets you specify a script to call whenever the
scale is changed. Tk will append the current value of the scale as a parameter each time it
calls this script (we saw a similar thing with extra parameters being added to scrollbar callbacks).
# label tied to the same variable as the scale, so auto-updates
num = StringVar()
ttk.Label(root, textvariable=num).grid(column=0, row=0, sticky='we')
# label that we'll manually update via the scale's command callback
manual = ttk.Label(root)
manual.grid(column=0, row=1, sticky='we')
def update_lbl(val):
manual['text'] = "Scale at " + val
scale = ttk.Scale(root, orient='horizontal', length=200, from_=1.0, to=100.0, variable=num, command=update_lbl)
scale.grid(column=0, row=2, sticky='we')
scale.set(20)
# label tied to the same variable as the scale, so auto-updates
grid [ttk::label .auto -textvariable num] -column 0 -row 0 -sticky we
# label that we'll manually update via the scale's command callback
grid [ttk::label .manual] -column 0 -row 1 -sticky we
proc update_lbl {val} {
.manual configure -text "Scale at $val"
}
ttk::scale .scale -orient horizontal -length 200 -from 1.0 -to 100.0 -variable num -command update_lbl
grid .scale -column 0 -row 2 -sticky we
.scale set 20
# label tied to the same variable as the scale, so auto-updates
num = TkVariable.new
Tk::Tile::Label.new(root) {textvariable num}.grid :column => 0, :row => 0, :sticky => 'we'
# label that we'll manually update via the scale's command callback
$manual = Tk::Tile::Label.new(root)
$manual.grid :column => 0, :row => 1, :sticky => 'we'
def update_lbl(val)
$manual['text'] = "Scale at " + val.to_s
end
scale = Tk::Tile::Scale.new(root) {orient 'horizontal'; length 200; from 1.0; to 100.0; variable num; command proc{|v| update_lbl v}}
scale.grid :column => 0, :row => 2, :sticky => 'we'
scale.set 20
# label tied to the same variable as the scale, so auto-updates
$mw->new_ttk__label(-textvariable => \$num)->g_grid(-column => 0, -row => 0, -sticky => "we");
# label that we'll manually update via the scale's command callback
$manual = $mw->new_ttk__label();
$manual->g_grid(-column => 0, -row => 1, -sticky => "we");
sub update_lbl {
my ($val) = @_;
$manual->configure(-text => "Scale x at ".$val);
}
$scale = $mw->new_ttk__scale(-orient => 'horizontal', -length => 200, -from => 1.0, -to => 100.0,
-variable => \$num, -command => sub {($v) = @_; update_lbl($v);});
$scale->g_grid(-column => 0, -row => 2, -sticky => 'we');
$scale->set(20);
As with other themed widgets, you can use the state disabled
, state !disabled
, and
instate disabled
methods to prevent users from modifying the scale.
As the scale widget does not display the actual values, you may want to add those separately, e.g., using label widgets.
Spinbox
A spinbox widget allows users to choose numbers (or, in fact, items from an arbitrary list). It does this by combining an entry-like widget showing the current value with a pair of small up/down arrows, which can be used to step through the range of possible choices.
The themed spinbox was added in Tk 8.5.9 (released in 2010). If you must run an older version, there is a spinbox in the classic Tk widgets, though with a slightly different API.
Spinbox widgets.
Spinbox widgets are created using the ttk.Spinbox
class:
spinval = StringVar()
s = ttk.Spinbox(parent, from_=1.0, to=100.0, textvariable=spinval)
Spinbox widgets are created using the ttk::spinbox
command:
ttk::spinbox .s -from 1.0 -to 100.0 -textvariable spinval
Spinbox widgets are created using the Tk::Tile::Spinbox
class:
$spinval = TkVariable.new
s = Tk::Tile::Spinbox.new(parent) {from 1.0; to 100.0; textvariable $spinval}
Spinbox widgets are created using the new_ttk__spinbox
method, a.k.a. Tkx::ttk__spinbox
:
$parent->new_ttk__spinbox(-from => 1.0, -to => 100.0, -textvariable => \$spinval);
Like scale widgets, spinboxes let users choose a number between a certain range
(specified using the from
and to
configuration options),
though through a very different user interface. You can also specify an increment
, which controls how much the value changes every time you click
the up or down button.
Like a listbox or combobox, spinboxes can also be used to let users choose an item from an arbitrary list of strings;
these can be specified using the values
configuration option. This works in the same way it does for comboboxes;
specifying a list of values will override to from
and to
settings.
In their default state, spinboxes allow users to select values either via the up and down buttons or by typing them directly into the
entry area that displays the current value. If you'd like to disable the latter feature so that only the up and down buttons are available,
you can set the readonly
state flag.
s.state(['readonly'])
.s state readonly
s.state('readonly')
$s->state("readonly");
Like other themed widgets, you can also disable spinboxes via the disabled
state flag or check the state via the instate
method.
Spinboxes also support validation in the same manner as entry widgets, using the validate
and validatecommand
configuration options.
You might be puzzled about when to choose a scale, listbox, combobox, entry, or a spinbox. Often, several of these can be used for the same types of data. The answer really depends on what you want users to select, platform user interface conventions, and the role the value plays in your user interface.
For example, both a combobox and a spinbox take up fairly small amounts of space compared with a listbox. They might make sense for a more peripheral setting. A more primary and prominent choice in a user interface may warrant the extra space a listbox occupies. Spinboxes don't make much sense when items don't have a natural and obvious ordering to them. Be careful about putting too many items in both comboboxes and spinboxes. This can make it more time-consuming to select an item.
There is a boolean wrap
option that determines whether
the value should wrap around when it goes beyond the starting or ending values. You can also specify a width
for the entry holding the current value of the spinbox.
Again there are choices as to how to set or get the current value in the spinbox. Normally, you would specify a linked
variable with the textvariable
configuration option. As usual, any changes to the variable are reflected in the spinbox,
while any changes in the spinbox are reflected in the linked variable. As well, the set value
and get
methods allow you to set or get the value directly.
Spinboxes generate virtual events when users press up (<<Increment>>
) or down (<<Decrement>>
).
A command
configuration option allows you to provide a callback that is invoked on any changes.
Progressbar
A progressbar widget provides feedback to users about the progress of a lengthy operation.
In situations where you can estimate how long the operation will take to complete, you can display what fraction has already been completed. Otherwise, you can indicate the operation is continuing, but without suggesting how much longer it will take.
Progressbar widgets.
Progressbar widgets are created using the ttk.Progressbar
class:
p = ttk.Progressbar(parent, orient=HORIZONTAL, length=200, mode='determinate')
Progressbar widgets are created using the ttk::progressbar
command:
ttk::progressbar .p -orient horizontal -length 200 -mode determinate
Progressbar widgets are created using the Tk::Tile::Progressbar
class:
p = Tk::Tile::Progressbar.new(parent) {orient 'horizontal'; length 200; mode 'determinate'}
Progressbar widgets are created using the new_ttk__progressbar
method, a.k.a. Tkx::ttk__progressbar
:
$parent->new_ttk__progressbar(-orient => 'horizontal', -length => 200, -mode => 'determinate');
As with scale widgets, they should be given an orientation (horizontal
or vertical
) with the orient
configuration option and can be given an optional length
.
The mode
configuration option can be set to either determinate
, where
the progressbar will indicate relative progress towards completion, or indeterminate
, where it
shows that the operation is still continuing but without showing relative progress.
Determinate Progress
To use determinate mode, estimate the total number of "steps" the operation will take to complete. This could be an
amount of time but doesn't need to be. Provide this to the progressbar using the maximum
configuration option.
It should be a floating-point number and defaults to 100.0
(i.e., each step is 1%).
As you proceed through the operation, tell the progressbar how far along you are with the value
configuration option. So this
would start at 0 and then count upwards to the maximum value you have set.
There are two slight variations
on this. First, you can just store the current value for the progressbar in a variable linked to it by the
progressbar's variable
configuration option; that way, when you change the variable, the progressbar
will update. The other alternative is to call the progressbar's step ?amount?
method.
This increments the value by the given amount
(defaults to 1.0).
Indeterminate Progress
Use indeterminate mode when you can't easily estimate how far along in a long-running task you actually are. However, you still want
to provide feedback that the operation is continuing (and that your program hasn't crashed).
At the start of the operation, call the progressbar's start
method. At the end of the
operation, call its stop
method. The progressbar will take care of the rest.
Unfortunately, "the progressbar will take care of the rest" isn't quite so simple. In fact, if you start
the progressbar, call
a function that takes several minutes to complete, and then stop
the progressbar, your program will appear frozen the whole time,
with the progressbar not updating. In fact, it will not likely appear onscreen at all. Yikes!
To learn why that is and how to address it, the next chapter takes a deeper dive into Tk's event loop.
Spotted a mistake? Couldn't find what you were looking for? Suggestions? Let me know!
If you've found this tutorial useful, please check out Modern Tkinter.
